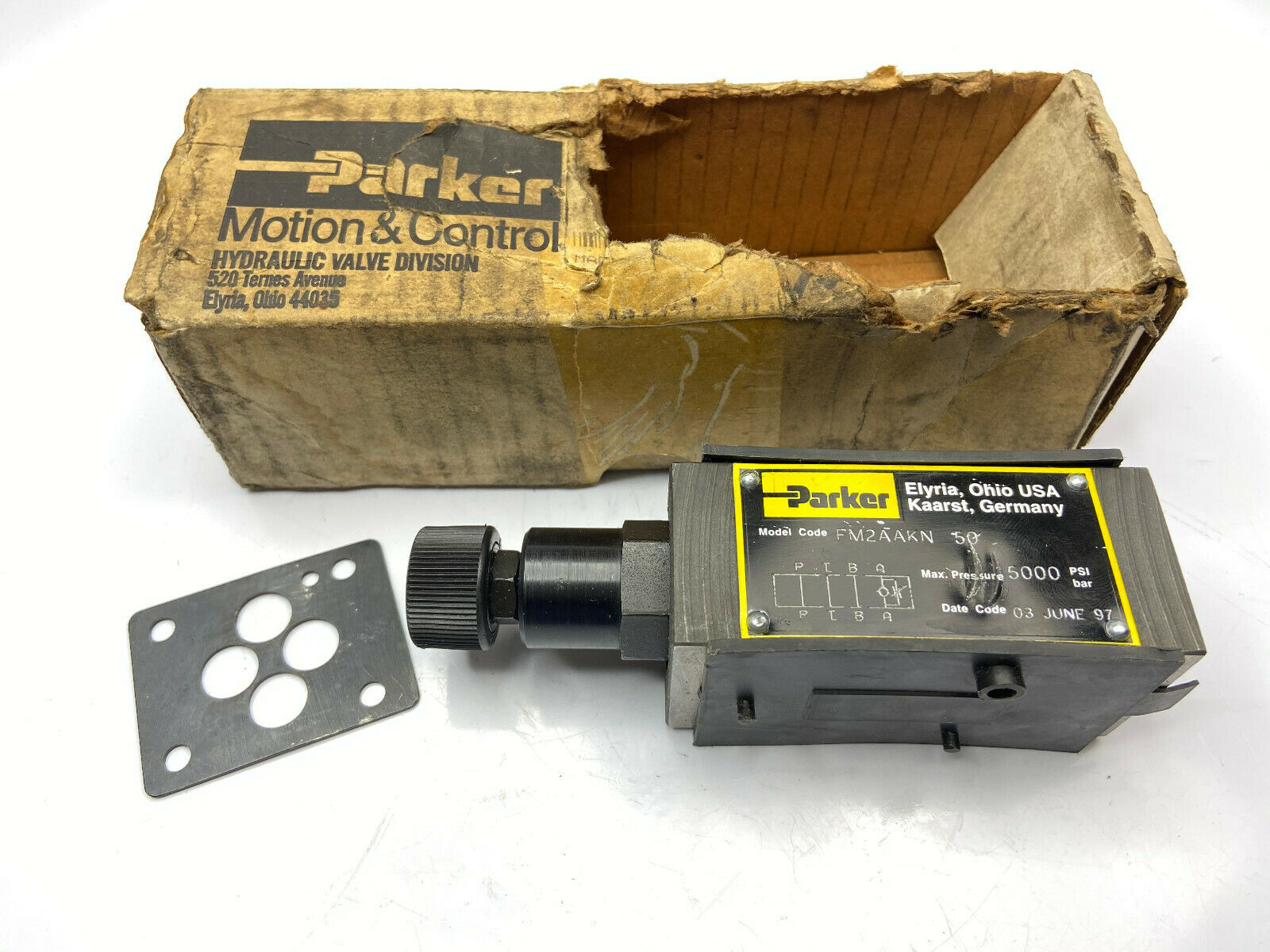

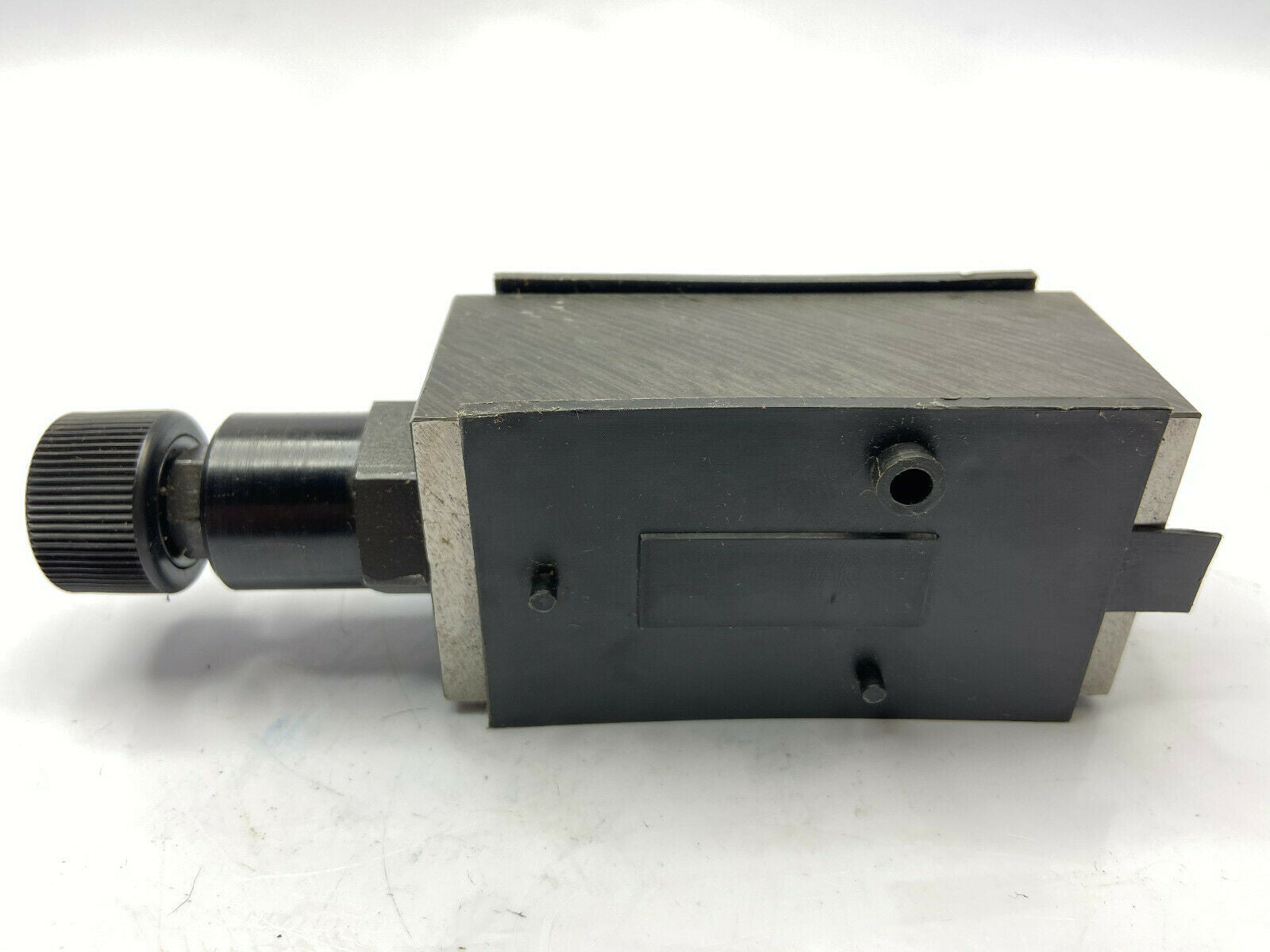

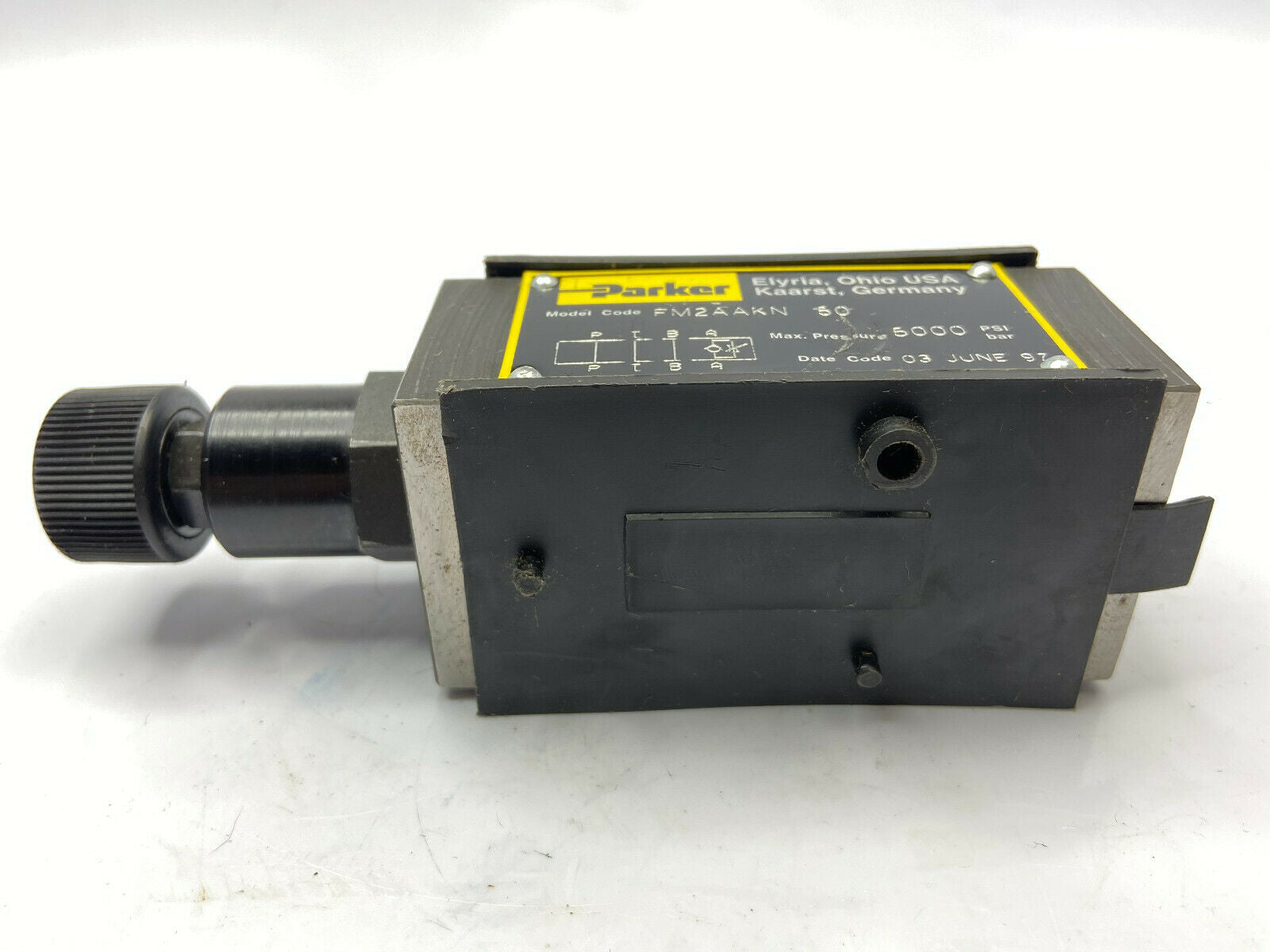

Parker FM2AAKN 50 Hydraulic Sandwich Throttle Check Valve
Parker FM2AAKN 50 Hydraulic Sandwich Throttle Check Valve
Technical Specifications
- Version: Standard conical
- Material - Seals: N - NBR
- Function: AA - Only Port A Meter-in/out throttle
- Adjustment Type: Knob
- Nominal Size: NG06
- Body Material: Nodular cast iron
- Maximum Operating Temperature: 60 °C
- Configuration: N/A
- Minimum Operating Temperature: -20 °C
- Seal Material: NBR
- Mounting Type: Sandwich plate
- Interface Type: CETOP 03 / NFPA D03
- Product Series: Throttle check valve
- Actuation Type: Manually
- Maximum Operating Pressure: 350 bar
- Maximum Flow Rate: 53 L/min
- Minimum Opening Pressure: 0.3 bar
