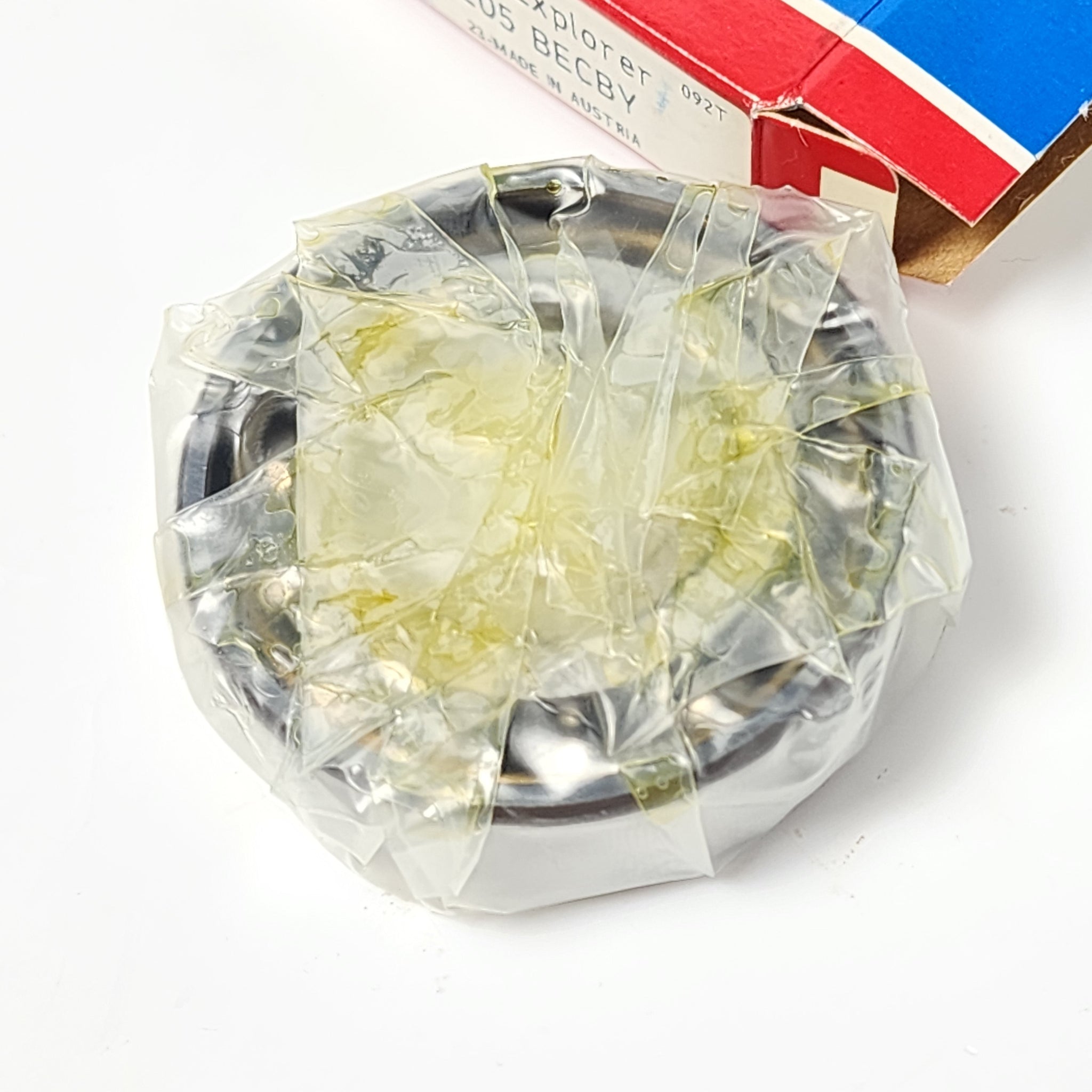

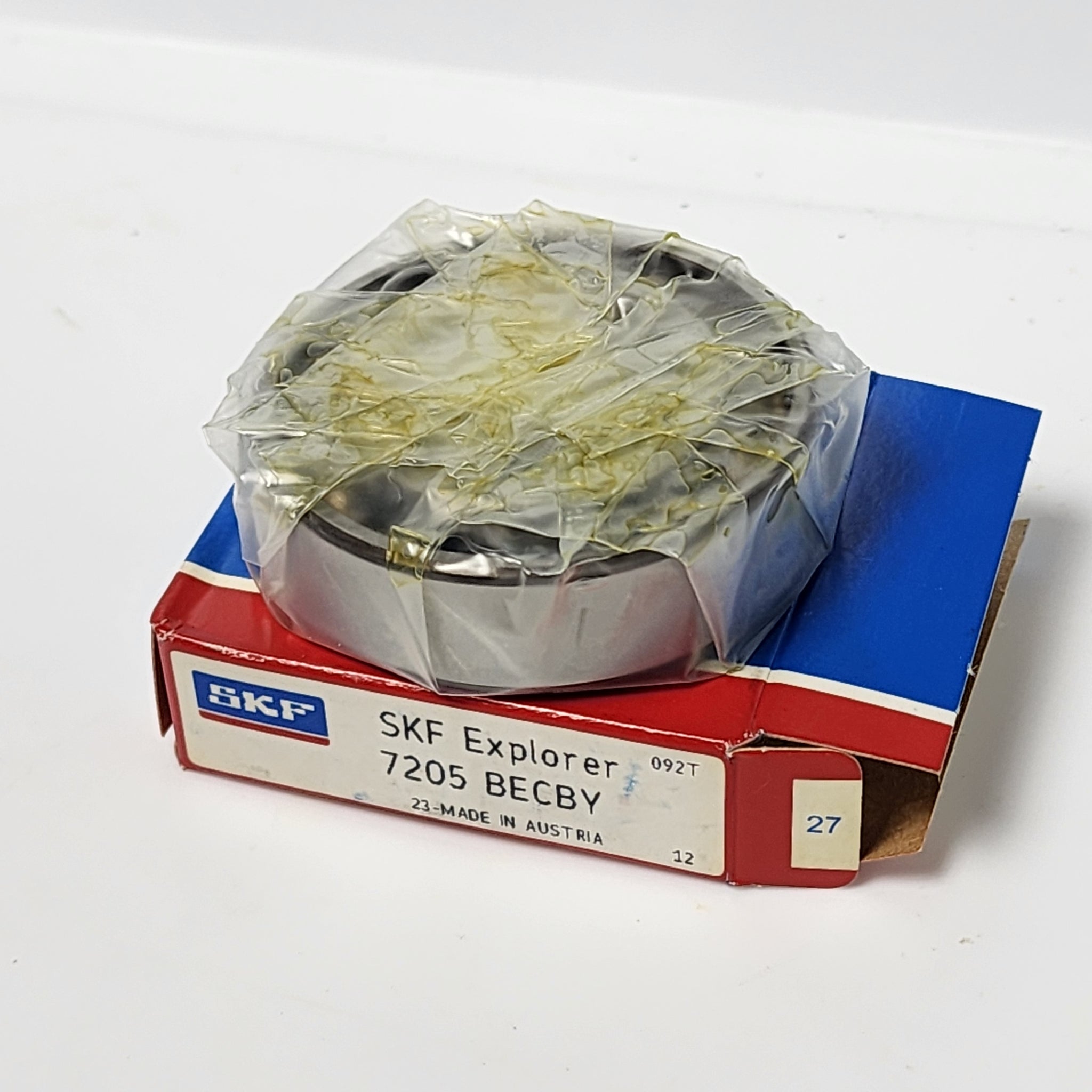

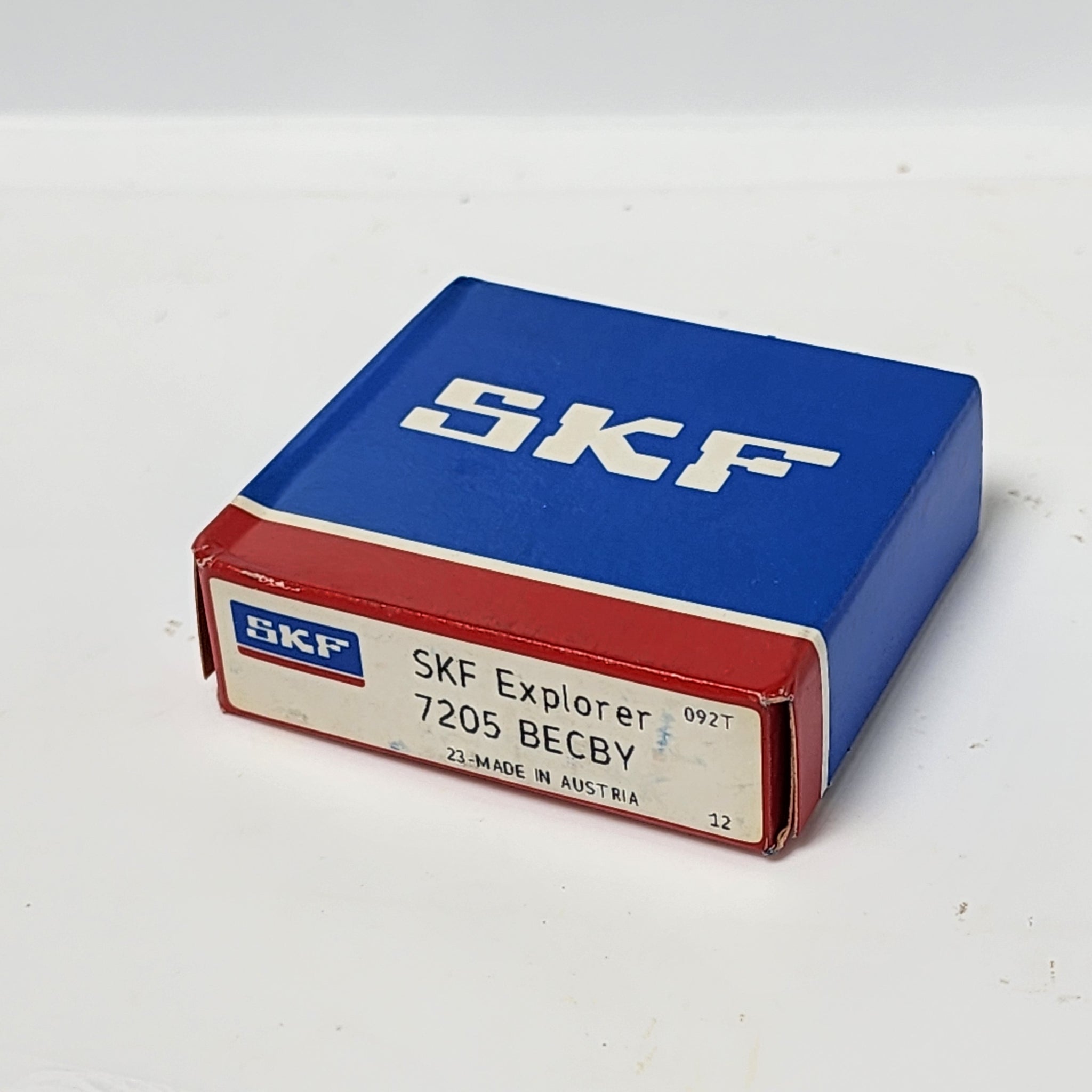

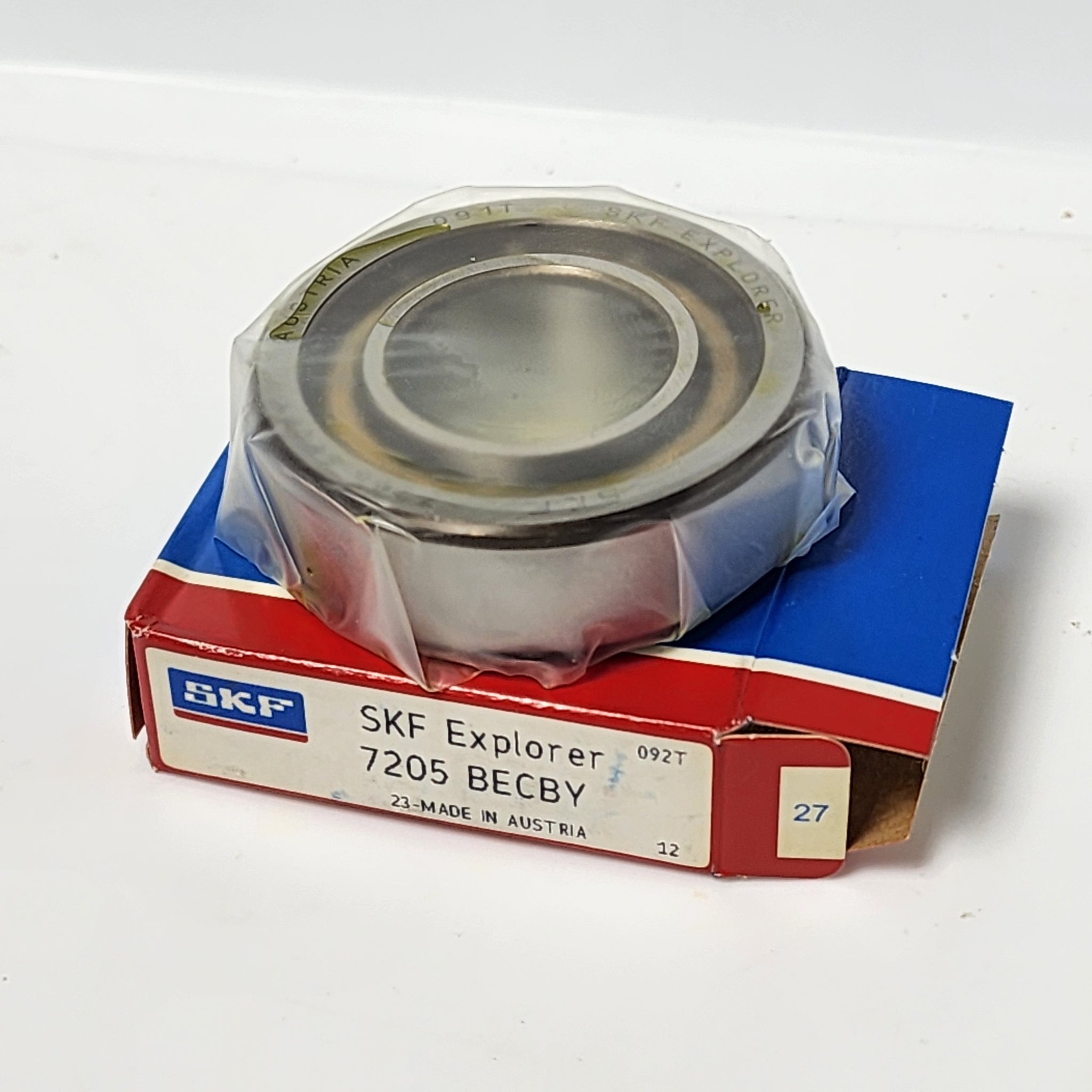

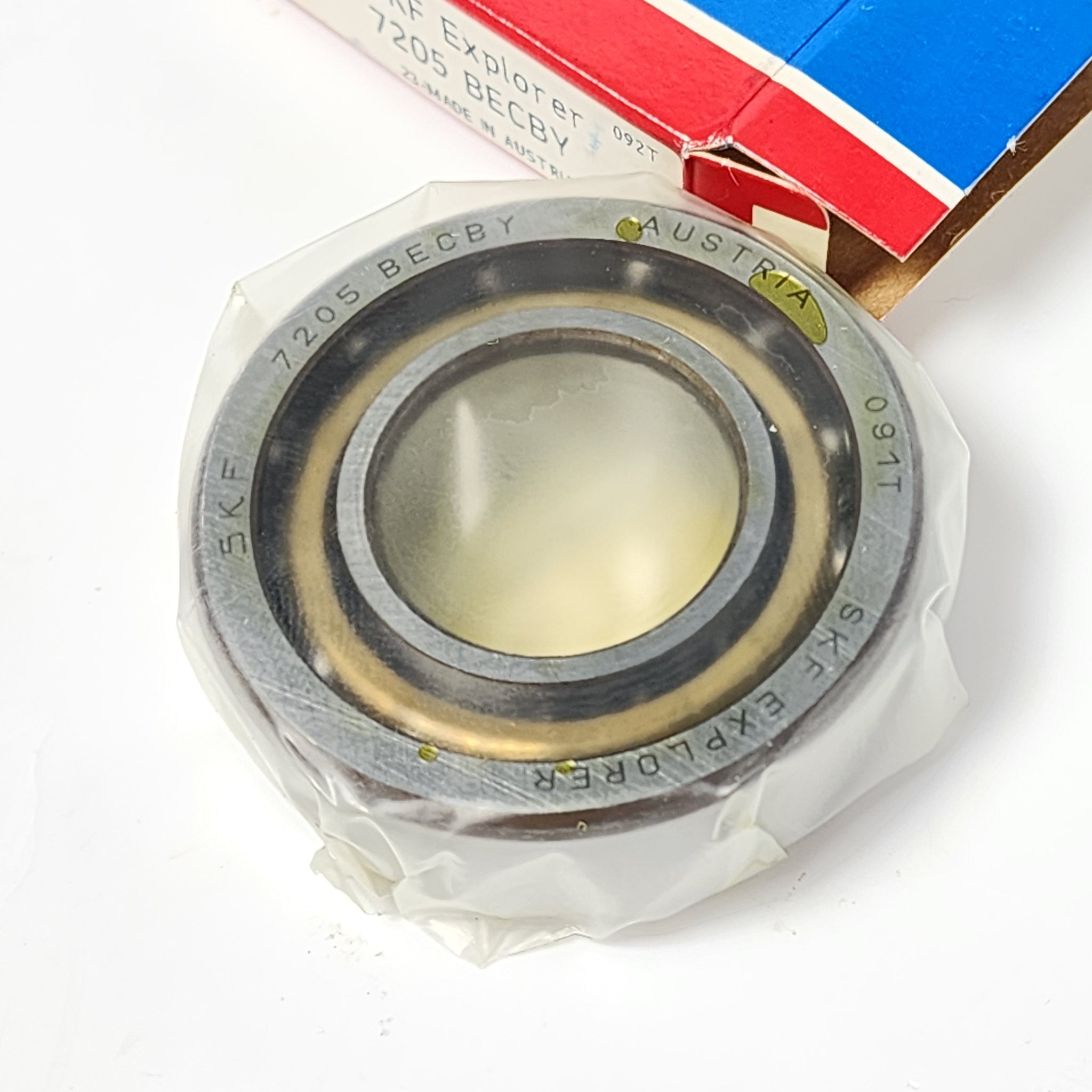

SKF 7205 BECBY (Explorer) Single Row Angular Contact Ball Bearing
SKF 7205 BECBY (Explorer) Single Row Angular Contact Ball Bearing.
Dimensions
| Bore diameter | 0.984 in |
| Outside diameter | 2.047 in |
| Width | 0.591 in |
| Contact angle | 40 ° |
Performance
| Basic dynamic load rating | 3 507 lbf |
| Basic static load rating | 2 248 lbf |
| Reference speed | 16 000 r/min |
| Limiting speed | 17 000 r/min |
| SKF performance class |
SKF Explorer |
Properties
| Contact type | Normal contact (two-point contact) |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer rings |
| Cage | Brass sheet metal |
| Matched arrangement | No |
| Universal matching bearing | Yes |
| Axial internal clearance | Not applicable |
| Matched condition (axial clearance/ preload) | Axial clearance CB |
| Tolerance class | Class P6 (P6) |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
